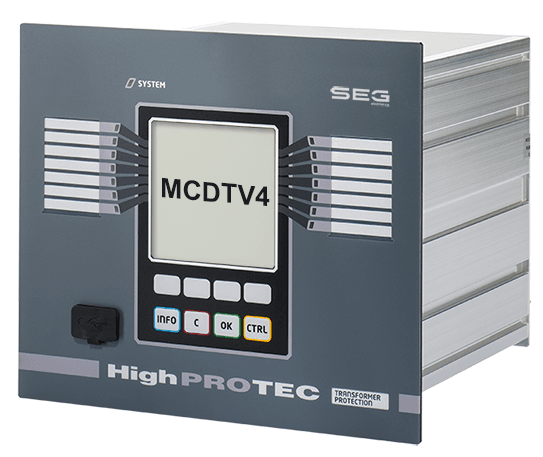

MCDTV4-2 TRANSFORMER DIFFERENTIAL PROTECTION
The MCDTV4 offers an all-in-one solution for HV, MV and LV transformers and it offers much more than just a differential protection package.
Furthermore it can detect critical operation states based on voltage measurement (e.g. Overexcitation). The MCDTV4 provides in addition to that an Interconnection package. This can be used for mains protection at the point of common coupling (e.g. for directional reactive power undervoltage protection). The integrated backup protection package enables the MCDTV4 to act as backup protection (e.g. for downstream breakers). Additional features like demand management are available without extra charge. The protection functions of the MCDTV4 have been adapted to comply with the requirements of the VDE-AR-N-4110:2018.
Wide range power supply: 24 … 270 VDC / 48 … 230 VAC
VT measurement from 0 V up to 800 VAC
CT measurement always with 1 A and 5 A
Plausibility verification intelligence
Optimized functional overview by hiding unused functions, parameter and assignments
On-board testing without removing the wiring
Comprehensive transformer protection package
