Circuit Breaker Controller (VDE AR-N 4105 & BDEW)
Please contact us if you need more information.

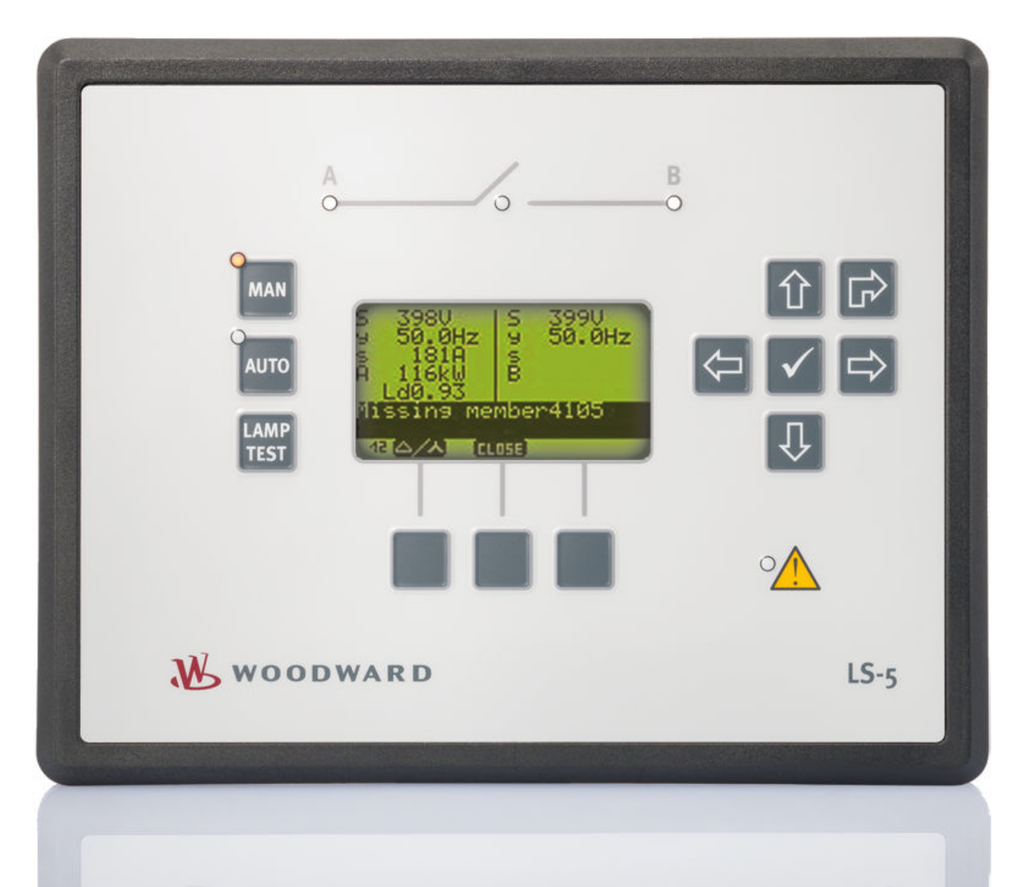

LS-5 Series V2

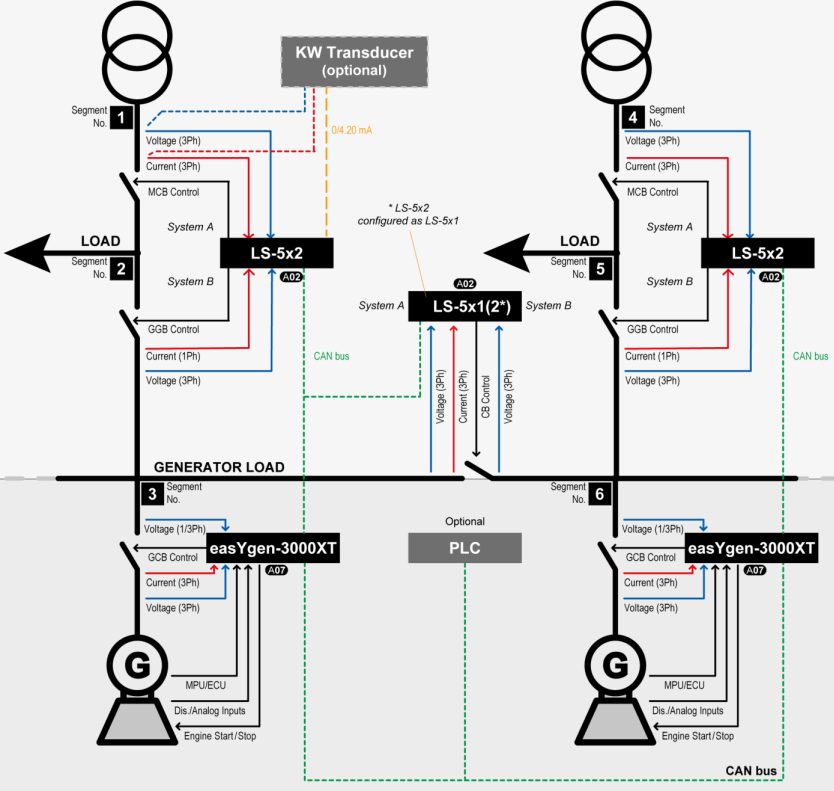

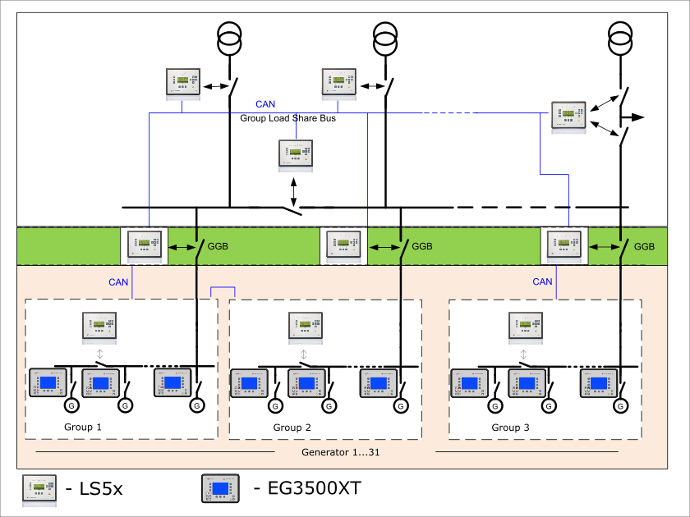

The LS-5x2 relays simplify the applications where load bus is served by a mains circuit breaker (MCB) and a generator group breaker (GGB). It senses voltage and current, quantifies the synchronization parameters and transmits the signals via CAN bus to the easYgen 3400XT/3500XT genset controllers.
The two breakers control capability along with mains decoupling and protection features make it a perfect choice for transfer switch control under guidance of an external supervisory control.
|LS-5 V2 Series - Product Specification||Open|
|LS-5 V2 Series - Technical Manual||Open|
