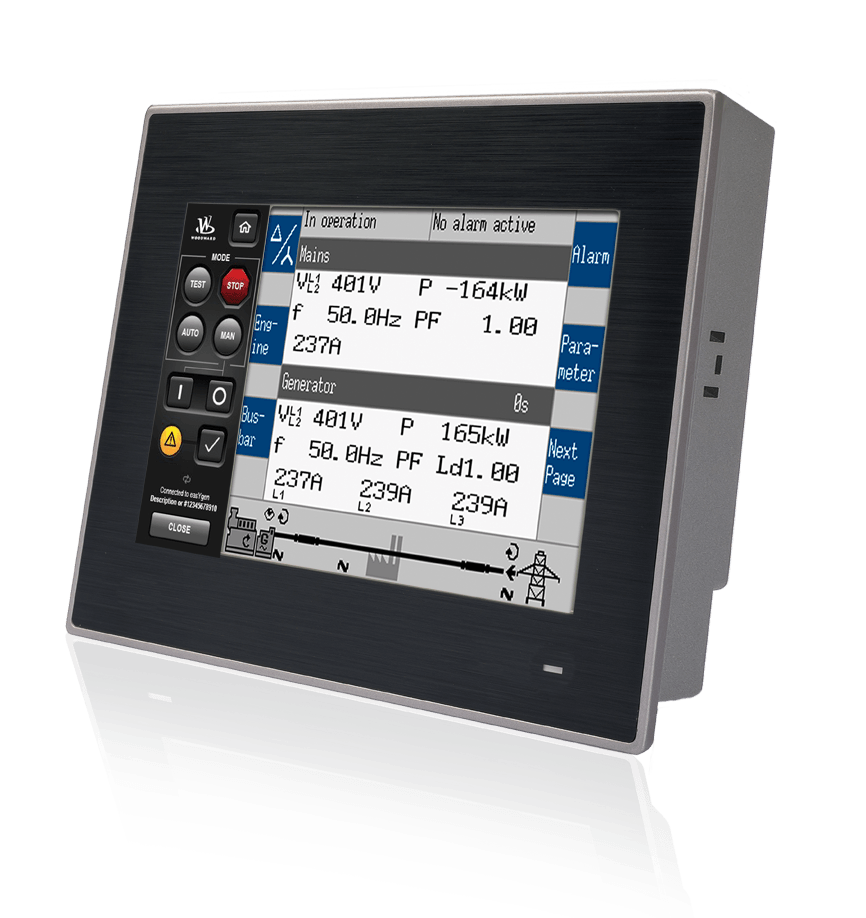

is a touch screen remote control and annunciation panel for use with the XT family power management controls. It offers switchgear builders, genset packagers, and system integrators an off-the-shelf HMI option for any application where a secure remote control, monitoring and visualization is desired, such as hospitals, data centers, offshore rigs, landfill and wastewater gas-to-power applications to name a few.

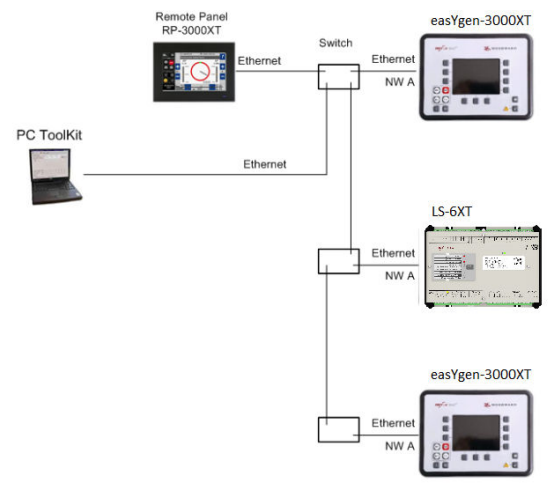

The RP-3000XT is particularly useful with the back panel mounted easYgen-3100XT/3400XT or LS-6XT, providing control from the front panel with greatly reduced wiring to the access door, while keeping high voltage connections located safely on the back panel. Commissioning RP-3000XT is very quick as it requires no service tool, making it ideal for minimizing field engineering.
Remote Control and Annunciation Panel
Please contact us if you need more information.
Plug-and-Play remote operator control panel for:
easYgen 3000XT Series genset controls
easYgen | LS-6XT Series circuit breaker controls
Use as full mirror of HMI resources, or only for annunciation or turn it completely off
Minimize commissioning time, offers connection to a fleet of controls (one at a time)
Offers on-the-fly configuration with same security levels as the connected control
Simplifies wiring to the access door and keeps high voltage connections remote
Small footprint makes compact installations
Touch screen and Color display
Ethernet communication to the connected control
Personalization by end user CE Marked UL/cUL Listing (61010)
