The 505XT is a standard steam turbine control for single extraction steam turbine. Its design is intended to replace existing 505E controller that uses a multi-line display, but it can also be used to upgrade any other steam turbine control.

Specific steam turbine software algorithms are in place similar to the obsolete 505E controller. Automatic, semi-automatic and manual start-up logic can be configured together with many various control operation possibilities. Due to this it is suiteable for all extraction steam turbine sizes and applications.

Additional features compared to old types of 505E controllers are: 3 critical speed avoidance bands, overspeed anticipation and shutdown protection, Sulfur-resistant conformal coating, real-time trend screens, trip and alarm event recorder, graphical operator interface screen, Ethernet interface with optional remote assistance support.

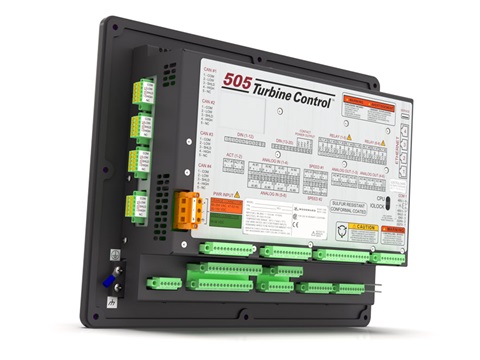

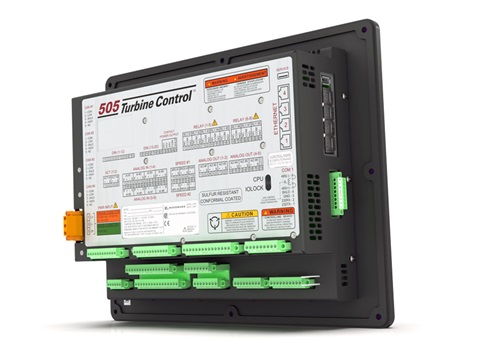

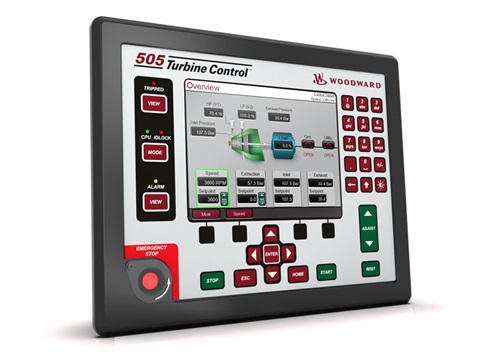

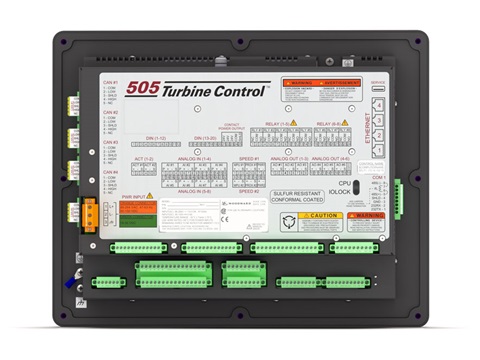

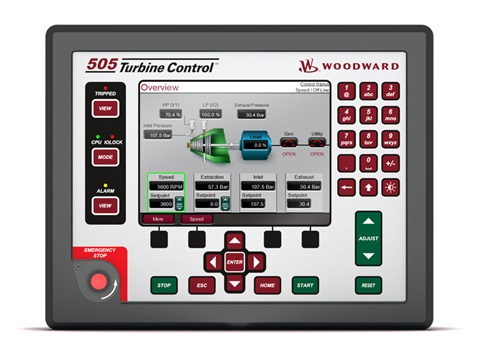

505XT

Part Number: 8200-1310
https://www.turner-ecs.com/web/image/product.template/2561/image_1920?unique=62eecf8


Please contact us if you need more information.
Variants Overview Table
  • Power Supply
  • Compliance

This combination does not exist.



Terms and Conditions

Downloads

Specification

Name Open
505XT DIGITAL CONTROL FOR STEAM TURBINES Open
REMOTEVIEW OPERATOR INTERFACE SOFTWARE FOR 505 Open

Manuals

Name Open
505XT DIGITAL CONTROL FOR STEAM TURBINES V1- Technical manual Open
505XT DIGITAL CONTROL FOR STEAM TURBINES V2- Technical manual Open
505XT DIGITAL CONTROL FOR STEAM TURBINES V3- Technical manual Open
