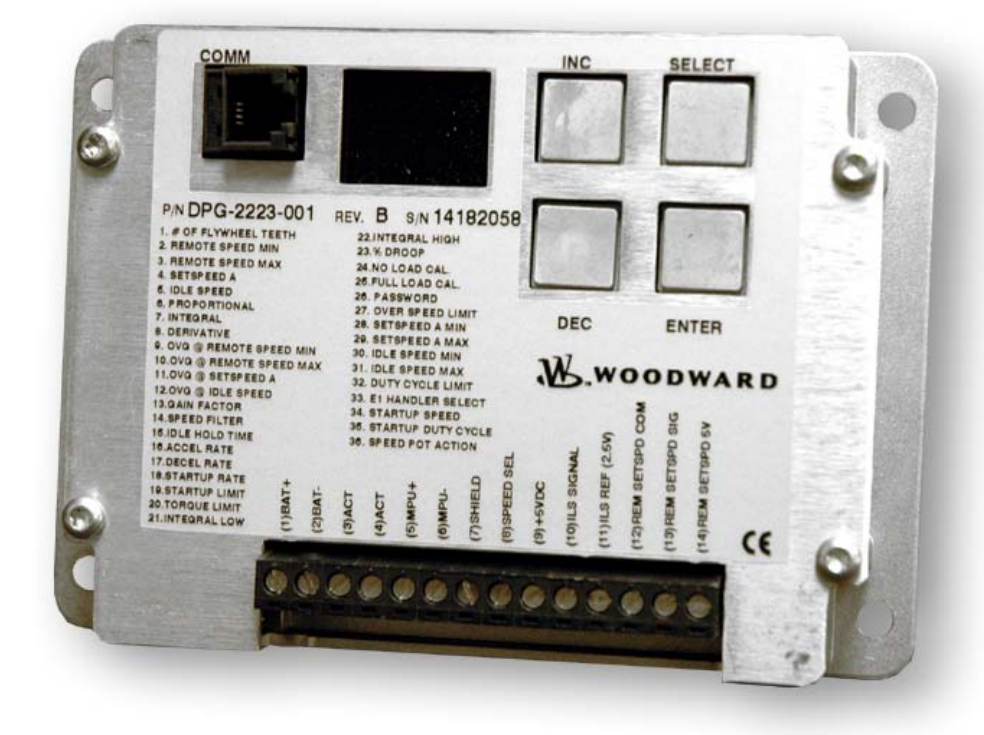

The APECS DPG-22XX-00X digital controller
is used primarily to govern diesel or gas fueled engines of generator sets. This microprocessor-based, digital controller performs across a wide speed range and allows adjustment of all controller features through the built-in user interface.
Properly tuned, this controller delivers fast engine response to speed or load change while providing precise stable isochronous operation.
Digital Controllers for Isochronous Generators with Load Sharing Capability
Isochronous Generators with Load Sharing Capability and Droop
Please contact us if you need more information.
Automatic calibration of the remote speed potentiometer
Isochronous speed control
Droop operation: 0 to 10% of set speed with 1/10 percent resolution
User friendly / operator adjustable
Precision frequency control: 0.25%
Superior temperature stability
Reverse battery protection
Input voltage range: 9–30 Vdc
Rated Output Current: 7 A Maximum (continuous)
Smoke control on start up
Serial communication port
